DigiTemp
×
![]()
- Digital Mixing Valves
- 85 to 405 GPM at 10psid
- Large commercial applications

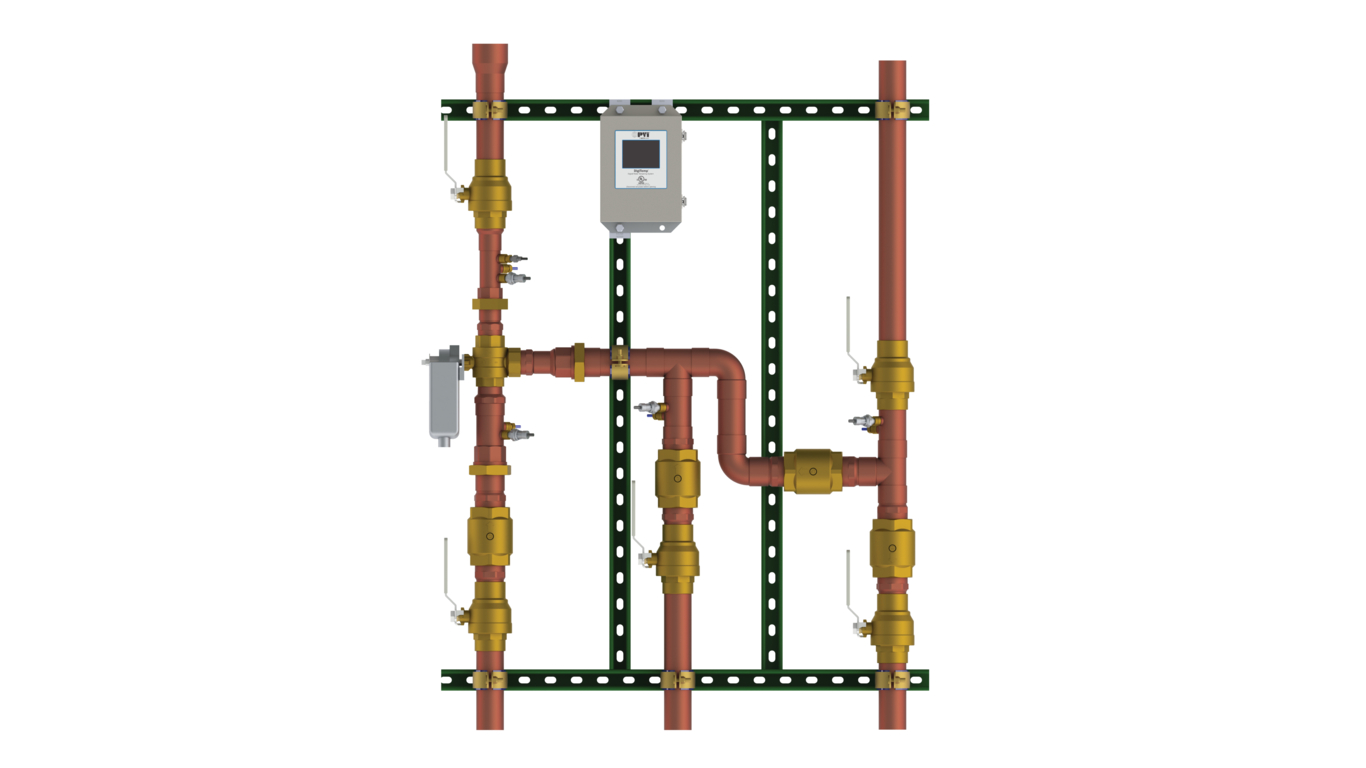

DigiTemp® Digital Water Tempering System is a hot water master blending system that provides fail-safe control for commercial, institutional and industrial domestic water applications. DigiTemp anticipates flow change to control output water temperature within ±2°F per ASSE 1017 standards. DigiTemp can be connected to a building automation system (BAS) to provide remote read/write access to a range of temperature and pressure measurements and allow adjustment of the outlet temperature setting within a pre-programmed range.
Features and Benefits
- Tight temperature control of ±2°F per ASSE 1017 standards
- 200 psi operating pressure
- Flow from 85 to 405 GPM @ 10psi pressure drop
- 80° to 180°F operating range
- Settings can be monitored and adjusted at the controller or remotely via BACNET or Modbus interface
- Configurable on-site without special software and laptop
- Cold water fail-safe with manual override feature to set mixed outlet temperature
- “Bubble tight” shut off prevents temperature creep
- Passcode protected for security
- User-programmable high-temperature alarm and building sanitation mode
- 3.5” full-color, user-selectable, touch screen display with pressure, temperature and flow/BTU data
- Low lead certified
Warranty
- 5-year warranty
Certifications
- ASSE 1017, cUPC, NSF, CSA 24/UL873
