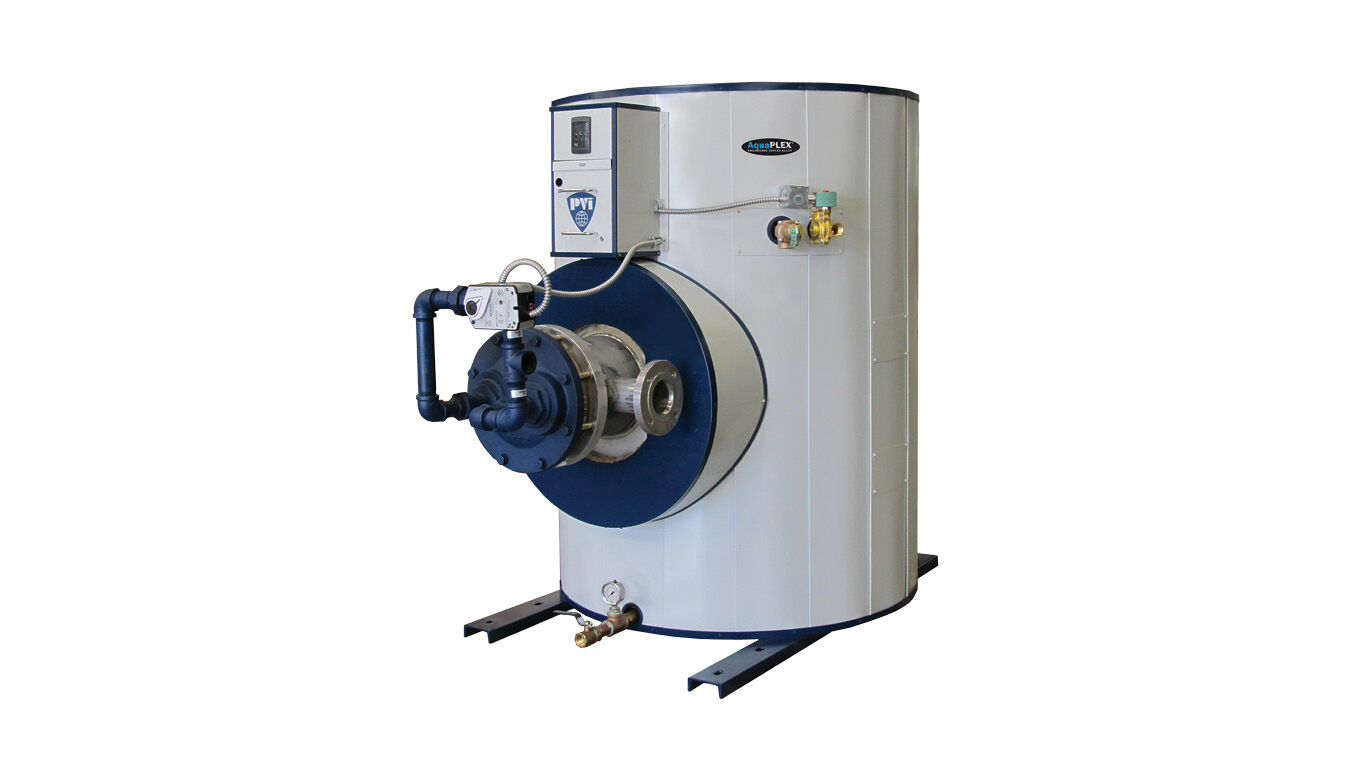

QuickDraw Water-to-Water Storage
×
![]()
- Boiler water heater
- Up to 4000 MBH
- 150 - 900 gallon tanks
QuickDraw boiler water storage heaters utilize a single or double-wall copper u-tube bundle to provide moderate to large amounts of domestic water from boiler water. Horizontal heat exchanger orientation allows easy removal for maintenance or repair. Tank corrosion protection avoids the use of anode rods, which is essential when a large non-ferrous heat exchanger is immersed in the storage tank.
Features and Benefits
- Single or double-wall copper u-tube bundle
- Two-way or three-way boiler water control valves
- Electronic operating system that is Modbus connectable to a building automation system
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 25-year AquaPLEX tank warranty (15 years full, 10 years prorated)
- One-year parts warranty
- First-year service policy (freight and labor coverage)
- Long-life service policy (optional)
Certifications
- ASME, section IV, part HLW stamped and National Board Registered
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific QuickDraw Water-to-Water Storage
