DigiTemp Jr
×
![]()
- Digital Mixing Valves
- Four models: 23, 55, 71 and 125 GPM at 10psid
- Light and heavy-duty commercial applications

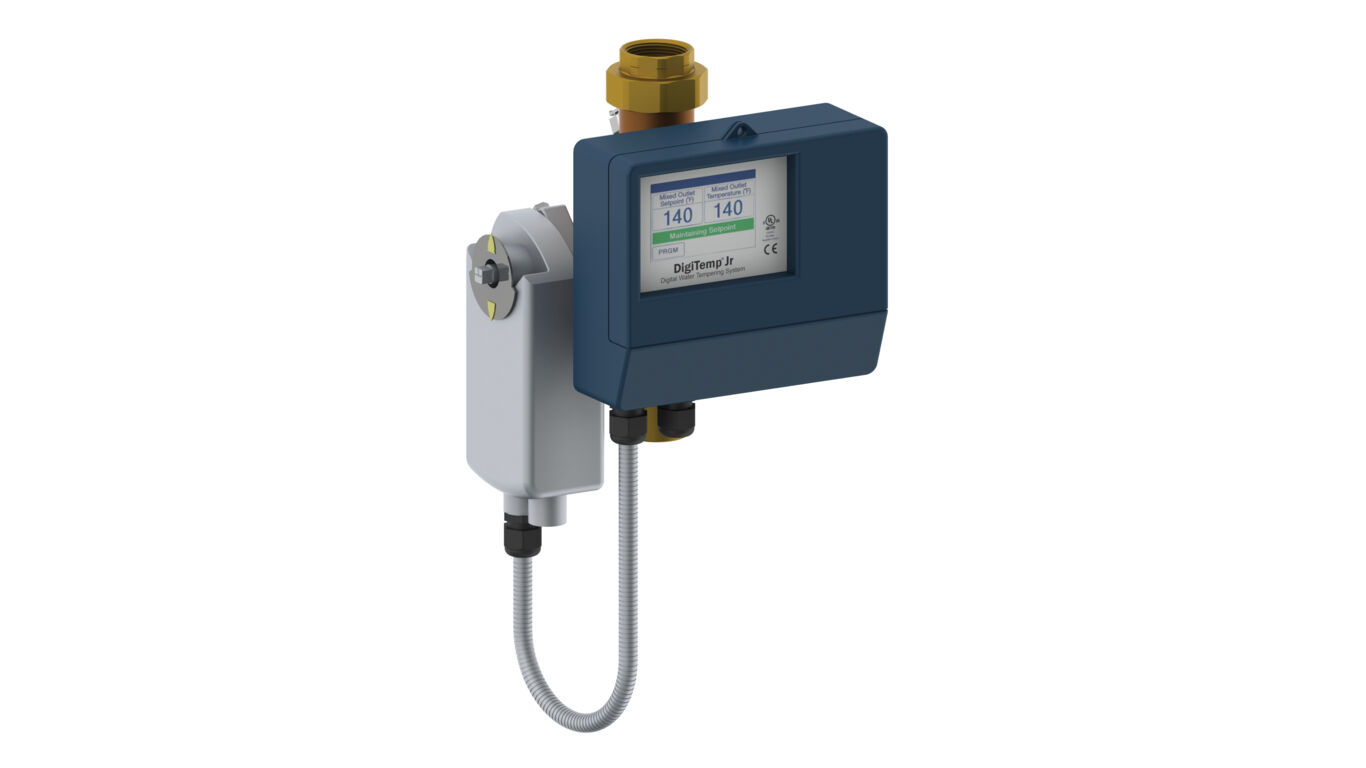

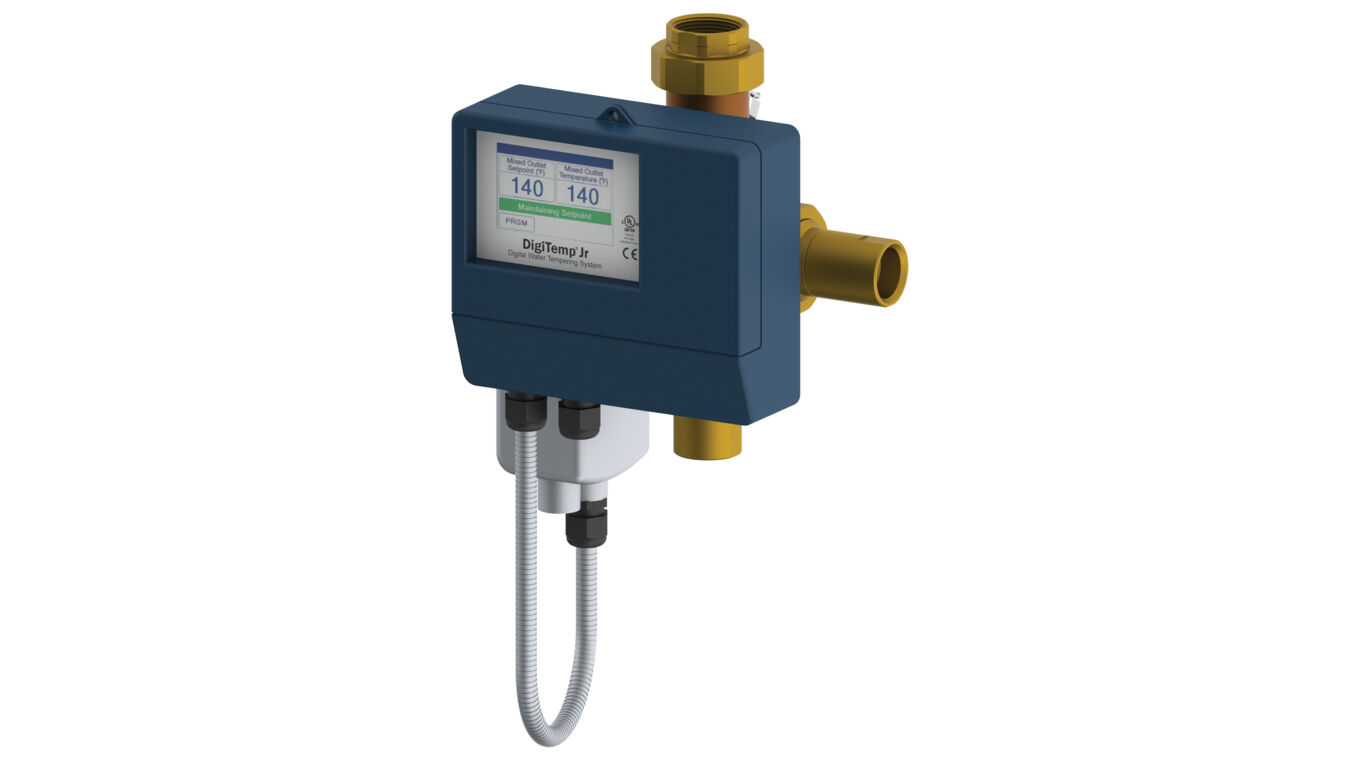

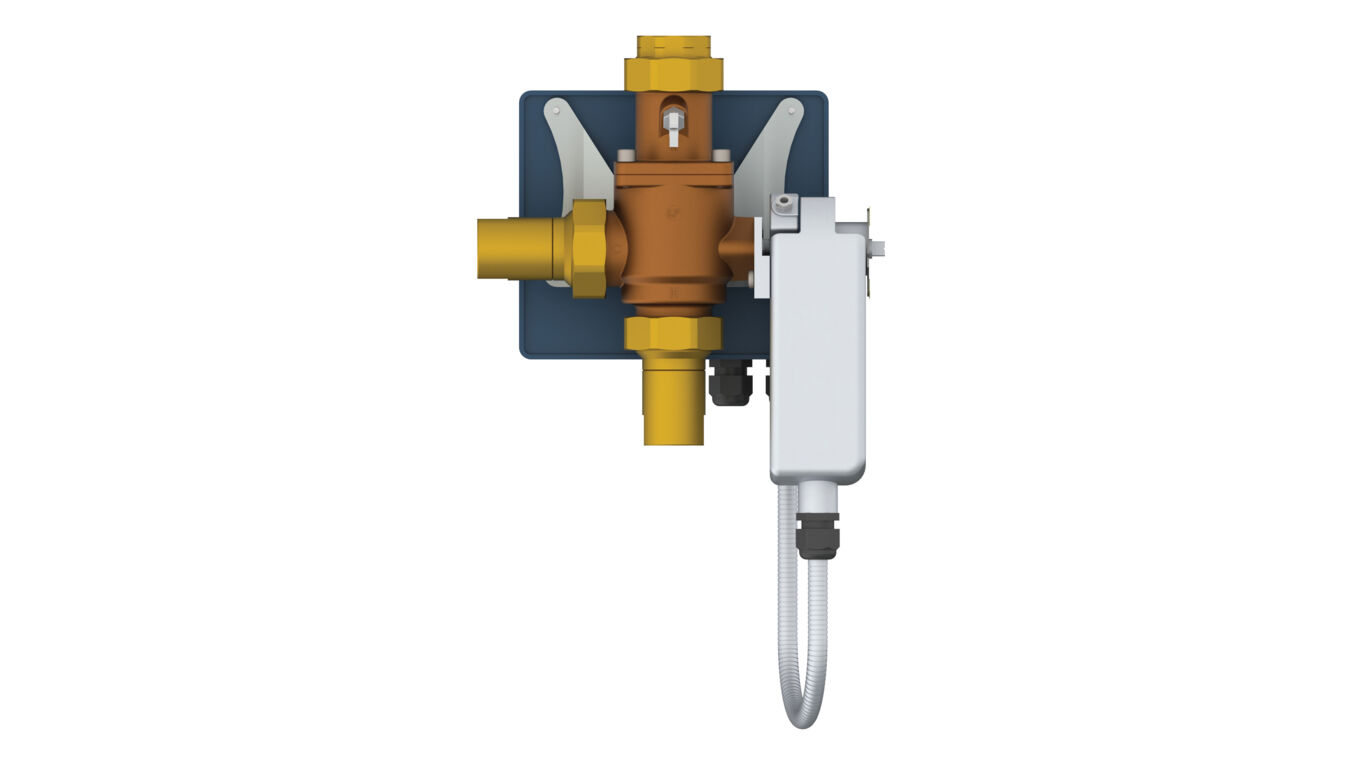

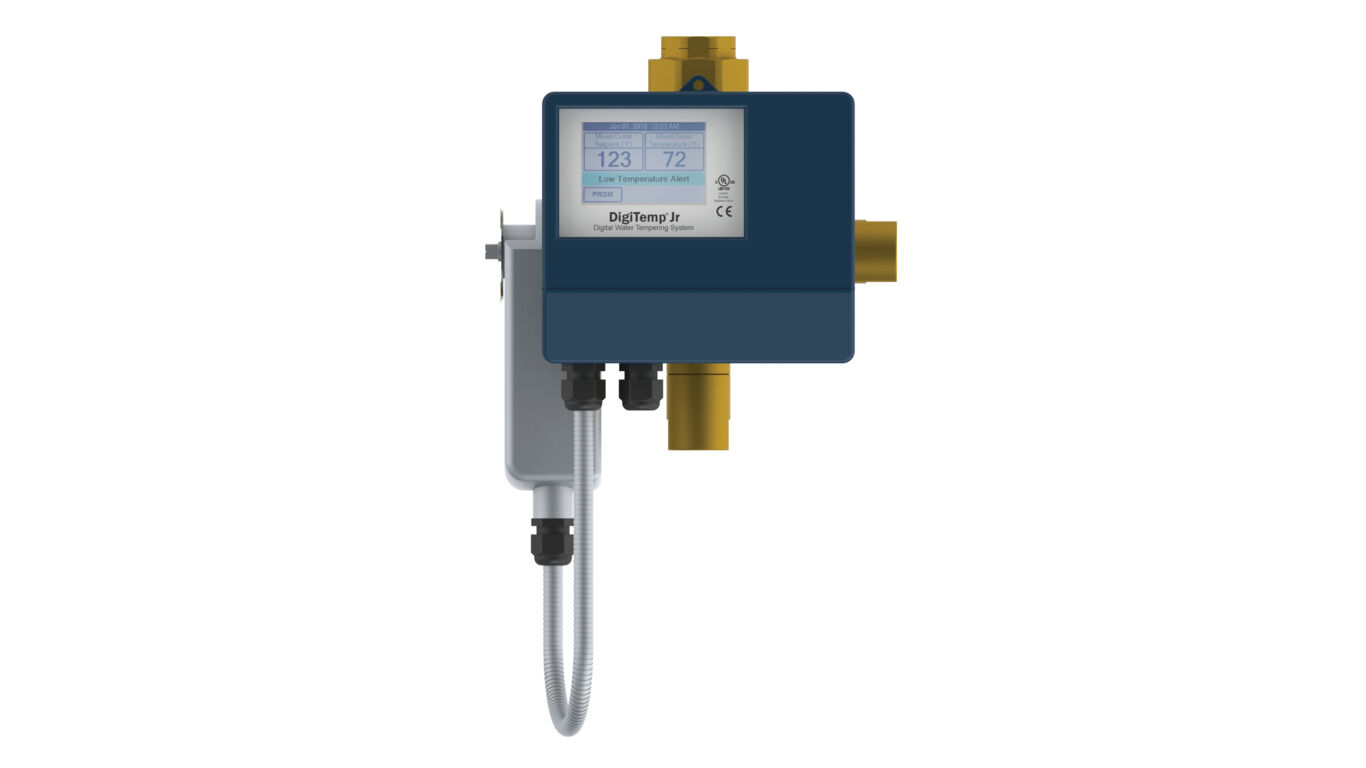

DigiTemp® Jr Digital Water Tempering System is a hot water master blending system that provides fail-safe control for commercial, institutional and industrial domestic water applications. DigiTemp Jr anticipates flow change to control output water temperature within ±2°F per ASSE 1017 standards. DigiTemp Jr can be connected to a building automation system (BAS) to provide remote read/write access to a range of temperature and pressure measurements and allow adjustment of the outlet temperature setting within a pre-programmed range.
Features and Benefits
- Max 200 psi operating pressure
- 60º to 180ºF operating range
- Programmable for building sanitation mode
- Flow from 23 to 125 GPM @ 10psi pressure drop
- Low lead certified
- “Bubble tight” shut off prevents temperature creep
- Building automation system ready
- Passcode protected for security
- User programmable high temperature alarm
- 3.5” full-color, user-selectable touch screen display
Warranty
- 5-year warranty
Certifications
- ASSE 1017, cUPC, NSF, CSA 24/UL873
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific DigiTemp Jr
