CSX Instantaneous
×
![]()
- Steam water heater
- 15 - 60 GPM

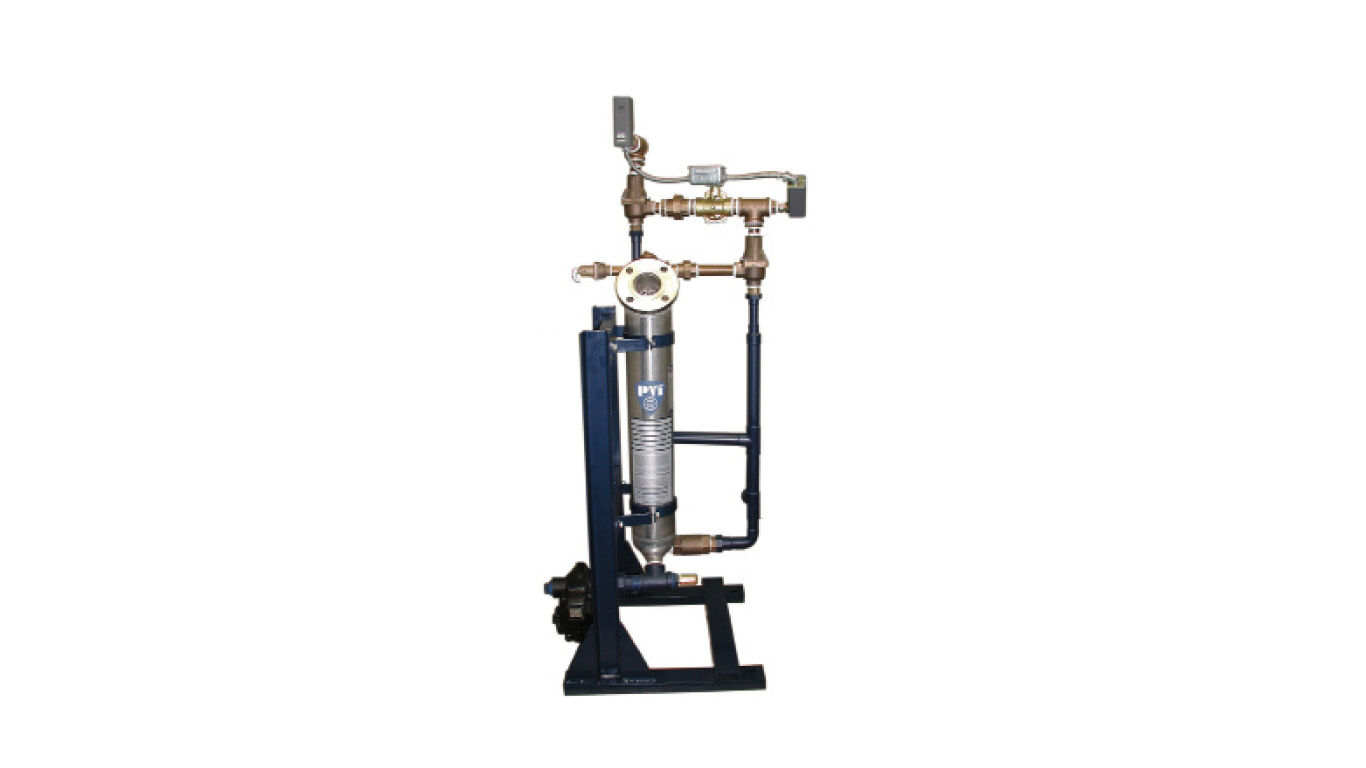

CSX® Instantaneous is an "on-demand" steam-fired water heater. It uses a spiral, counter-flow, stainless steel heat exchanger to instantly heat water. Two thermostatic mixing valves installed in series blend the water to the desired outlet temperature. Heater includes two high-limit safeties with solenoid shutoff valves. No steam control valve is required when inlet steam pressure is 15 psi or less.
Features and Benefits
- No valve required with steam pressure 15 psi and less
- Steam PRV available for pressure above 15 psi
- Skid mounted and factory piped
Corrosion Protection
- All non-ferrous waterways construction; heat exchanger is passivated 316L stainless steel
- Piping and fittings are either bronze or copper
Warranty
- One-year heat exchanger warranty covering defects in material or workmanship
- One-year parts warranty
- First-year service policy (freight and labor coverage)
Certifications
- ASME, section VIII and National Board Registered
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific CSX Instantaneous
