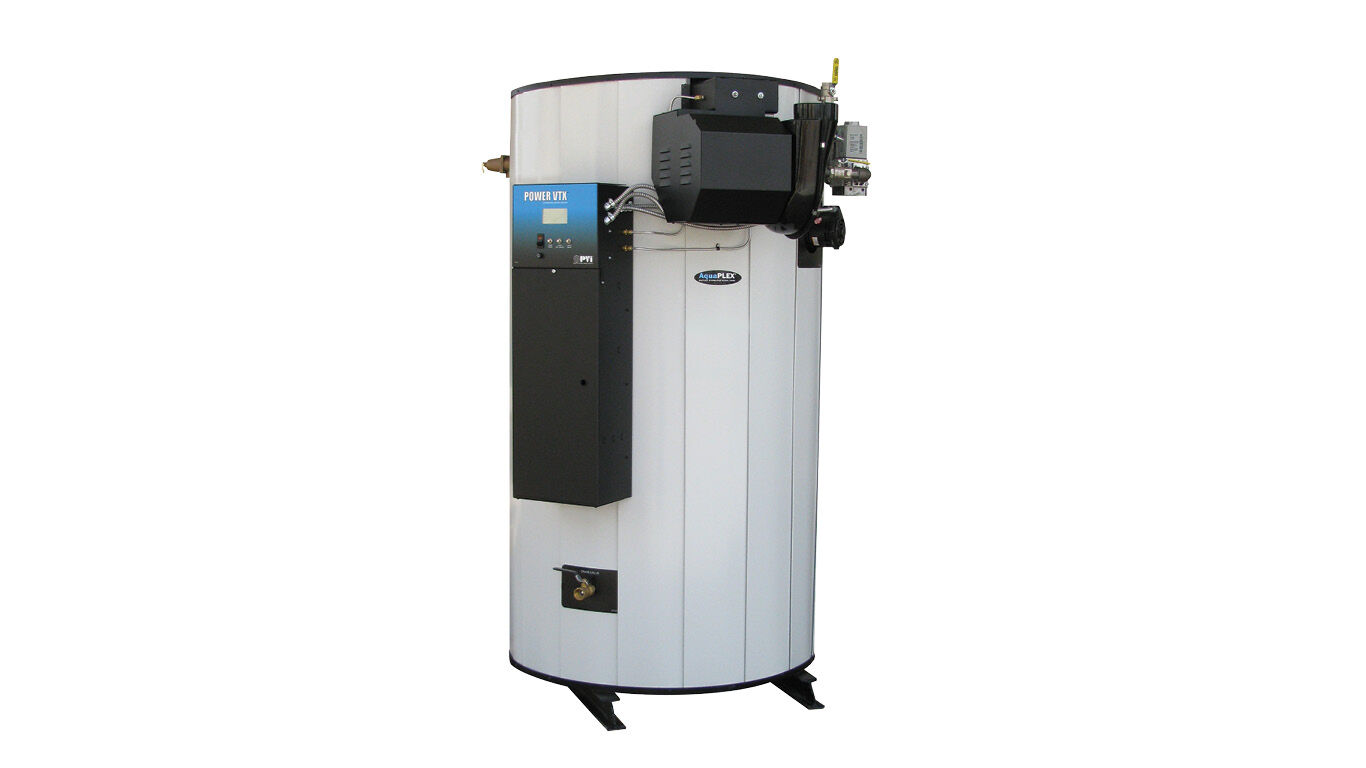

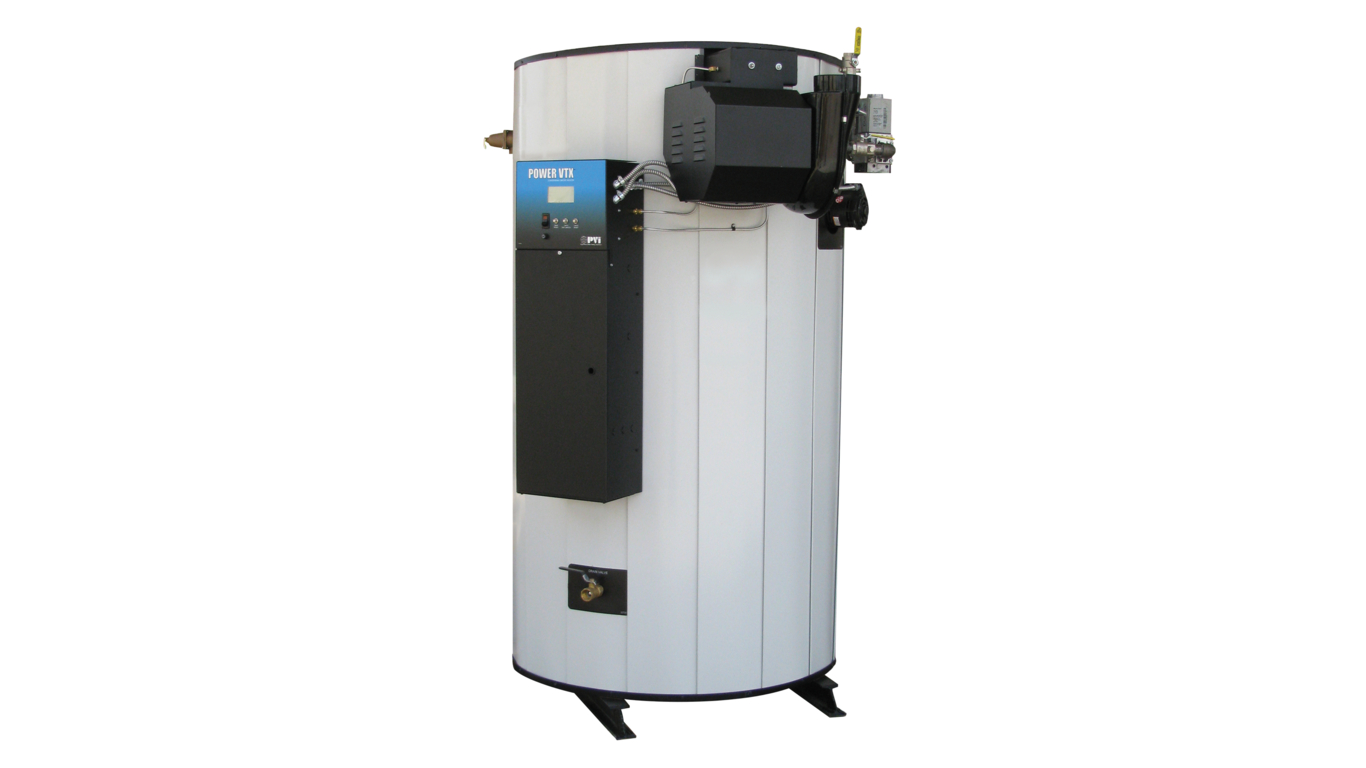

Power VTX
×
![]()
- Gas Condensing water heater
- 500, 750, 1000 MBH
- 225 gallon tank
Power VTX® is a high efficiency condensing storage water heater featuring a submerged combustion chamber, enhanced fire tubes and a storage tank fabricated entirely from AquaPLEX duplex stainless steel for increased life expectancy and reliability. Seamless pulse width modulation reduces cycling and improves efficiency up to 99% during low load conditions.
Features and Benefits
- 96% thermal efficiency
- Modulating burner provides part load efficiency up to 99%
- Natural or LP gas (combinaon gas train switchable between natural and LP gas is available as an opon)
- Premix stainless steel surface burner
- Low NOx < 20 ppm, SCAQMD compliant
- Gas trains are ANSI/CSA compliant and include a second safety shutoff valve and gas pressure regulator
- Category IV venting (positive pressure) up to 200 eq. feet through 6-inch diameter material
- Direct inlet combustion air venting
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank and heat exchanger
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 15-year AquaPLEX tank and heat exchanger corrosion warranty (8 years full, 7 years prorated)
- One-year parts warranty
Certifications
- Meets ASHRAE 90.1
- Qualifies for LEED certification
- ETL-listed as low-lead, NSF 372 compliant
- FM compliant and certified at <20ppm NOx
- ASME, section IV, part HLW stamped and National Board registered
- ETL listed to ANSI Z21.10.3/CSA 4.3
- CSD-1 (GE-GAP) controls optional
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Power VTX
