Power VT Plus
×
![]()
- Gas Condensing water heater
- 1000, 1500, 1800, 2000 MBH in a 250 gallon tank
- 500, 750, 900, 1000, 1500, 1800, 2000 MBH in a 300 gallon tank

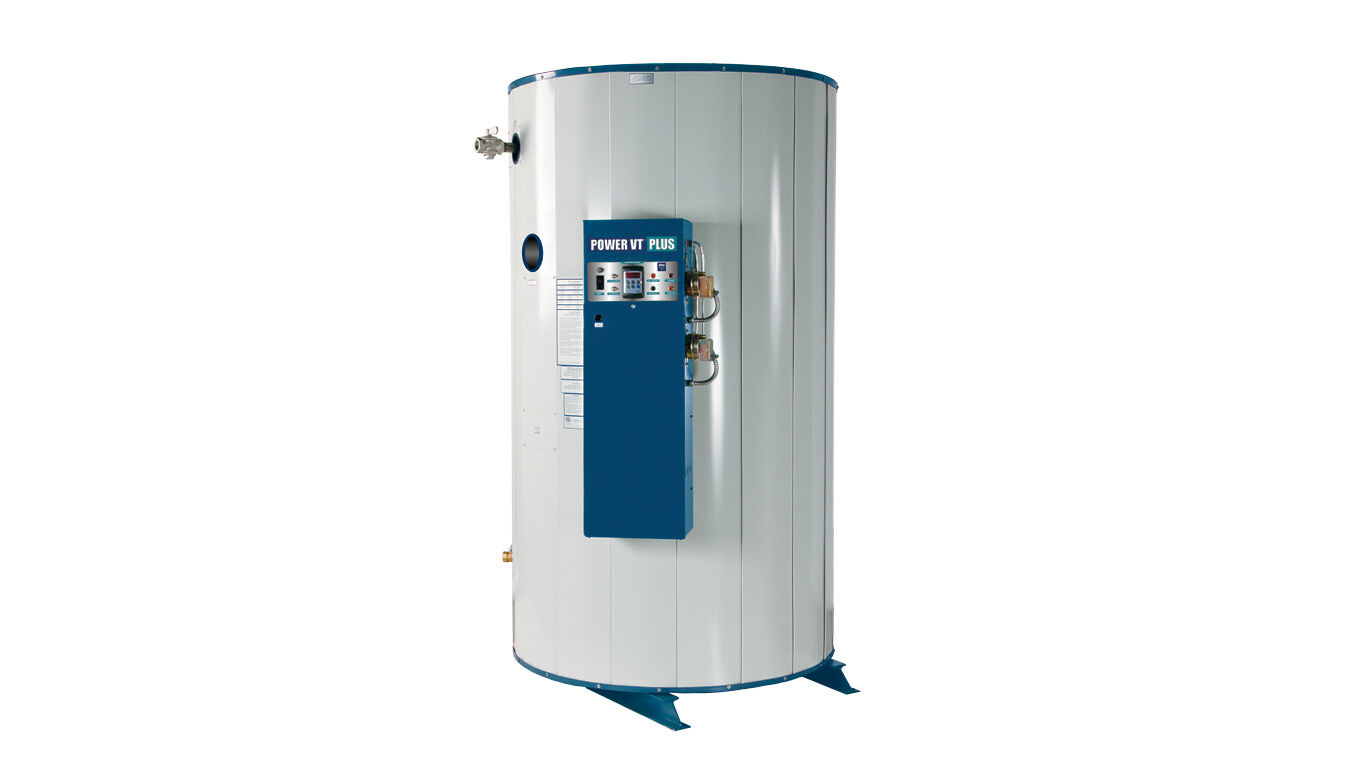

Power VT® Plus is a fire tube, condensing storage water heater featuring a 3-pass heat exchanger and a fourth pass economizer for maximum energy savings. Modulating burner with up to 4-to-1 turndown is available. Modbus connectable operating control included. Fabricated from durable, corrosion-resistant AquaPLEX duplex stainless steel.
Features and Benefits
- Up to 96% thermal efficiency
- Natural gas or LP gas; available with up to 4-to-1 modulation
- Premix surface burners
- Low NOx <20 ppm on most models
- Gas trains are UL compliant and include a second safety shutoff valve and gas pressure regulator
- Product vents positively through PVC for 100 equivalent feet
- Category IV venting with CPVC vent material
- Factory equipped for connection to direct combustion air
AquaPLEX Corrosion Protection
- Highly durable AquaPLEX® engineered duplex stainless steel storage tank and heat exchanger
- Corrosion-resistant in potable water at any temperature
- Highly resistant to chloride stress corrosion cracking
- No lining required
- Non-ferrous, removable tank connections
- No anode rods required or used
Warranty
- 15-year AquaPLEX tank and heat exchanger corrosion warranty (8 years full, 7 years prorated)
- One-year parts warranty
- First-year service policy (freight and labor coverage)
- Long-life service policy (optional)
Certifications
- Qualifies for LEED certification
- ETL listed to U.S. and Canada safety standards
- FM compliant
- ASME, section IV, part HLW stamped and National Board Registered
- CSD-1 (GE-GAP) controls optional
Technical Documents
Technical Documents
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Power VT Plus
